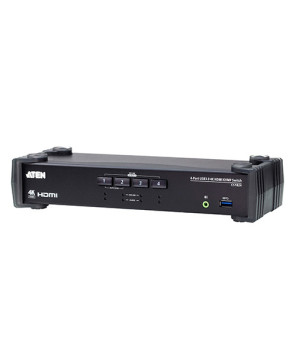

The Aten 4-Port USB 3.0 4K HDMI KVMP Switch CS1824-AT-U provides effortless management of four HDMI interface computers from a single USB keyboard, mouse, and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimises the user experience of multitasking.

In addition, the CS1824 has Audio Mixer Mode, which mixes audio sources from any two connected computers as audio output, allowing users to be notified of system alerts without missing them, even if the KVM focus is set on different PCs. With a built-in USB 3.1 Gen 1 hub, the CS1824-AT-U delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1824-AT-U offers a great advantage for those doing CGI work, graphic design, video post-production, etc. to operate multiple tasks smoothly.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
• Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio Mixer Modes – mixes up to two audio sources as audio output
• Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
• ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
• Independent switching of KVM, USB peripheral, and stereo audio focus
• HDMI 2.0 compliant; HDCP 2.2 compliant
• Supports HD Audio
• Power on detection
• Auto Scan Mode for monitoring all computers
• Firmware upgradable

• Computer Connections: 4
• Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands
• Connectors:
- Console Ports: 2 x USB Type A Female; 1 x HDMI Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue); 4 x HDMI Female (Black); 4 x 3.5mm Audio Jack Female (Green)
- Serial: 1 x RJ-11 Female
- Power: 1 x DC Jack
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
• Switches:
- Selected: 4 x Pushbutton
• LEDs:
- On Line /Selected: 4 (Orange)
- USB Link: 4 (Green)
- Audio: 4 (Green)
• Emulation:
- Keyboard / Mouse: USB
• Video: 4096 x 2160 @ 60Hz
• Scan Interval: 1-99 Seconds (Default: 5 sec.)
• Power Consumption: DC5V:2.535W:54.5BTU
• Physical Properties:
- Housing: Metal, Plastic
- Weight: 0.94 kg ( 2.07 lb )

• 1x CS1824 4-Port USB 3.0 4K HDMI KVMP Switch
• 4x HDMI 2.0 Cables
• 4x USB 3.0 Cables
• 4x Audio Cables
• 1x Power Adapter
• User Instructions
