The Aten 2-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch CS1642A-AT-U is a multi-application device that integrates a 2-port KVM switch with a 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.

This 2-Port USB DVI Dual View KVMP™ Switch features multi-view capabilities, which allow two switches to be daisy-chained for a dual, triple, or quad view display across multi-monitor installations. It supports advanced Nvidia 3D Vision ready 120Hz 3D displaying, allowing you to manage various 3D visual effects. It also allows you to manipulate all connected computers from a single console to save resources and workspace. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A-AT-U is perfect for graphic designers, banking and financial consultants, gamers, and medical professionals-demanding a high-quality switch that provides stunning color, clarity, and functionality.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Superior video quality – 2560 x 1600 at 60Hz (DVI Dual-link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
• Multi-Display – Easily connect two CS1642A/1644A units for a second dual-screen setup controlled through a single connection
• Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimise resolution when switching between ports
• Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, Sun, and FreeBSD

• Computer Connections: 2
• Port Selection: Hotkey, Pushbutton, Mouse
• Connectors:

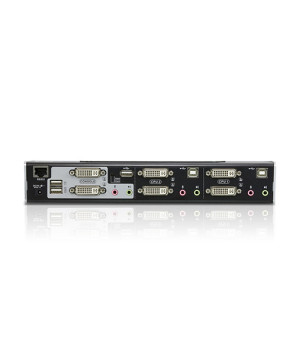

- Console Ports: 2 x USB Type A Female (rear panel); 2 x DVI-I Female (White); 1 x 3.5mm Audio Jack Female (Green); 1 x 3.5mm Audio Jack Female (Pink)
- KVM Ports: 2 x USB Type B Female; 4 x DVI-I Female (white); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink)
- Daisy Chain Ports: 1 x RJ-45 Female (rear panel)
- Power: 1 x DC Jack
- USB Hub: 2 x USB Type A Female (1 x front panel; 1 x rear panel)
• LEDs:
- KVM: 2 (Orange)
- Audio: 2 (Green)
- USB Link: 2 (Green)
• Switches:
- Selected: 3 x Pushbutton
• Emulation:
- Keyboard / Mouse: USB
• Video: DVI Dual Link: 2560 x 1600 @ 60Hz; 3D Display: 1920 x 1200 @ 120Hz
• Scan Interval: 1-99 seconds (default: 5 secs.)
• Power Consumption: DC5.3V:3.77W:43BTU
• Physical Properties:
- Housing: Plastic, Metal
- Weight: 0.56 kg ( 1.23 lb )
- Dimensions (L x W x H): 26.23 x 7.68 x 4.40 cm

• 1x CS1642A 2-Port USB DVI Dual View KVMP™ Switch
• 2x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
• 2x DVI-D DL Cable (1.8m/6ft)
• 1x Power Adapter
• User Instructions
