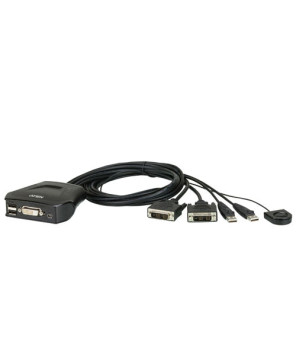

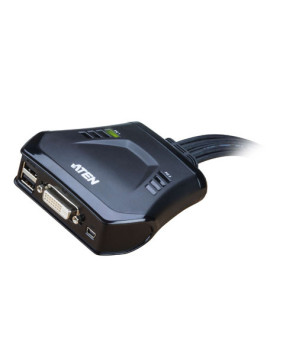

The Aten CS22D-AT is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.

The Aten CS22D-AT is a compact all-in-one design makes it ideal for multiplatform desktop applications.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24 months manufacturer's warranty.

• One DVI-D video console controls two DVI-D USB interface computers
• Computer Selection via Remote Port Selector
• OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
• Superior video quality- up to 1920 x 1200@60Hz
• Supports USB hot-plugging
• Bus-Powered
• The console USB ports can be used for USB peripheral sharing1

Note: 1. The CS22D may require an external power supply via a micro USB port.

• Computer Connections: 2

• Port Selection: Remote Port Selector

• Connectors
Console Ports: 1 x DVI-D Female (White), 2 x USB Type A Female, 1 x USB Mini-B Female
KVM Ports 2 x DVI-D Male (Black), 2 x USB Type A Male

• LEDs
Selected: 2 (Green)

• Cable Length
KVM: 2 x 1.2 m
Remote Port Selector: 1.8 m

• Video Resolution: 1920 x 1200 @ 60 Hz

• Power Consumption: DC5V:0.93W:9BTU

• Environmental
Operating Temperature: 0 - 50˚C
Storage Temperature: -20 - 60˚C
Humidity: 0 - 80% RH, Non-condensing

• Physical Properties
Housing: Plastic
Weight: 0.34 kg ( 0.75 lb )
Dimensions (L x W x H): 9.95 x 9.66 x 3.01 cm, (3.92 x 3.8 x 1.19 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

• 1 x Aten 2-Port USB DVI Cable KVM Switch with Remote Port Selector CS22D-AT

Do you have a question about this product? Please call 1800 90 90 99.
