The Aten 2-Port USB 3.0 DisplayPort KVMP Switch CS1912-AT-U offers the most recent advancements in desktop KVM switching technology in order to address the growing demand for improved video quality and faster file transfer rates on modern computers. It provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates, and enhanced user-friendly operations.

With its rich feature set, the CS1912-AT-U is designed to surpass all requirements for video post-production, CAD design, and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912-AT-U allows you to share the audio from each computer in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.

NOTE :
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. HD audio through DisplayPort cannot be switched independently.
3. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
4. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24-month manufacturer's warranty.

• 2-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
• One USB console controls 2 computers and 2 USB peripherals
• Independent switching of KVM, USB, and Audio focus
• Superior video quality – up to 3840 x 2160 @ 30 Hz
• 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
• DisplayPort 1.1 compliant, HDCP compliant
• Full bass response for high-quality 2.1 channel surround sound systems
• Power On Detection – if a computer is powered off, the CS1912 automatically switches to the next powered-on computer
• Hot pluggable – add or remove computers without powering down the switch
• Keyboard emulation/bypass feature supports most gaming keyboards
• Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
• Multi-platform support – Windows, Mac, and Linux
• Multilingual keyboard mapping supports English, Japanese, French and German keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable

• Computer Connections: 2
• Port Selection: Hotkey, Pushbutton, Mouse
• Connectors:
- Console Ports: 2 x USB Type A Female (Black); 1 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM Ports: 2 x USB3.1 Gen1 Type B Female (Blue); 2 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green)
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
- Power: 1 x DC Jack (Black)
• Switches:
- Selected: 2 x Pushbutton
• LEDs:
- USB Link: 2 (Green)
- On Line /Selected: 2 (Orange)
• Emulation:
- Keyboard / Mouse: USB
• Video: 3840 x 2160 @ 30Hz
• Scan Interval: 1-99 Seconds (Default: 5 sec.)
• Power Consumption: DC5V:2.00W:52BTU

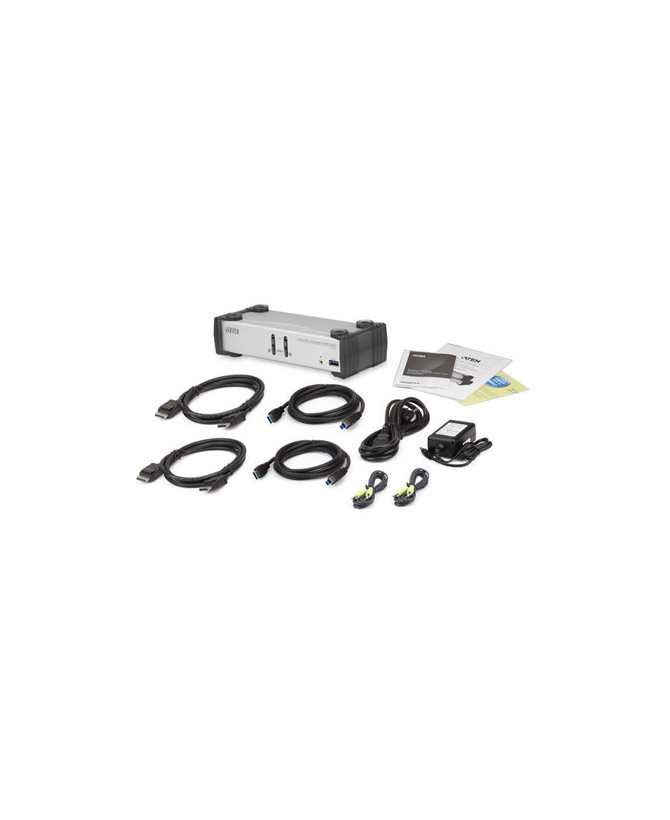

• 1 x 2-Port USB 3.0 DisplayPort KVMP Switch
• 2 x DisplayPort Cable (1.5m/5ft)
• 2 x USB Cable (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
• 2 x Audio Cable (1.8m/6ft)
• User Instructions
