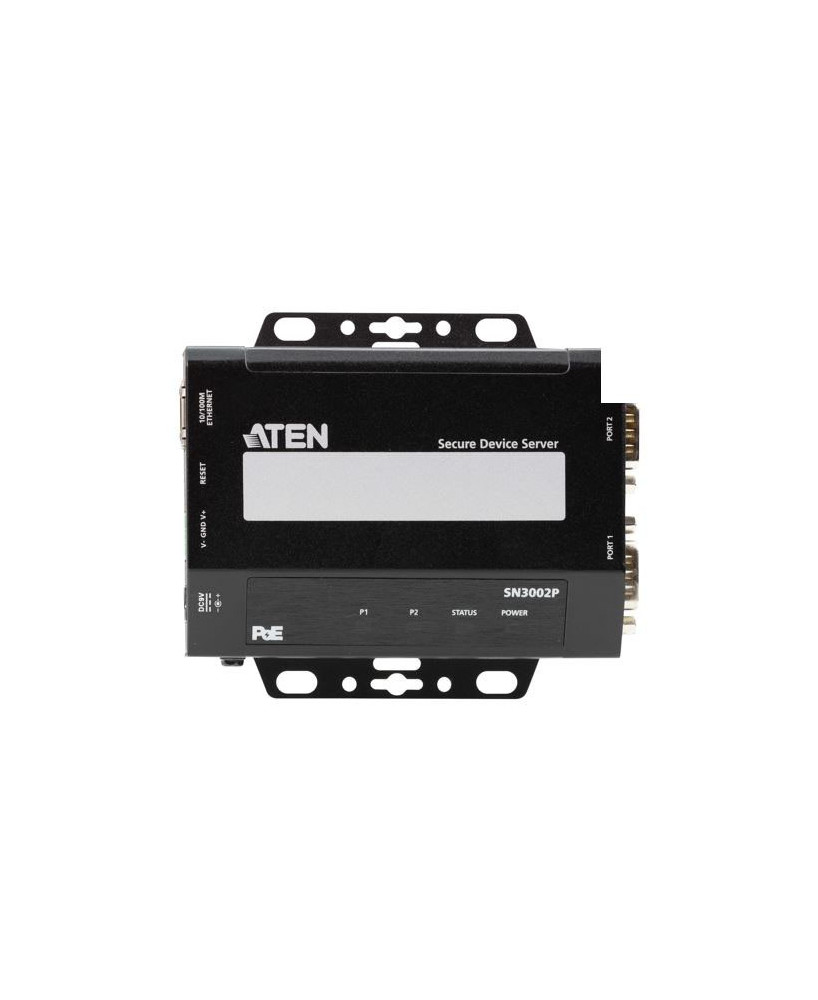

Aten 2-Port RS-232 Secure Device Server with PoE SN3002P-AX
The Aten SN3002P-AX 2-Port RS-232 Secure Device Server with PoE is an external IP-based network device that securely connects legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.
The Aten SN3002P-AX 2-Port RS-232 Secure Device Server with PoE is an external IP-based network device that securely connects legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network. This secure device server is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 12-month manufacturer's warranty.
FEATURES
• 2 RS-232 serial ports for secured serial data over Ethernet transmission
• Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
• Redundant power input (power jack and terminal block) for fail-safe power; IEEE 802.3af-compliant PoE power device equipment
• Surge protection for serial, Ethernet, and power
QUICK SPECIFICATIONS
• Product Type: Secure Device Server
• Serial: 2 x DB-9 Male
• Network: 1 x RJ-45 Female
• Power:
- 1 x DC Jack
- 1 x 3-pole Terminal Block
- 1 x RJ-45 (PoE, IEEE 802.3af)
• Switches Reset: 1 x Semi-recessed Pushbutton
• LEDs:
- Power 1 (Green)
- Status 1 (Yellow Green/Red)
- 10/100 Mbps 2 (Green/Orange)
- Ports 2 (Green/Orange)
• Input voltage:
- DC Jack: 9VDC (optional power adapter)
- Terminal Block: 9-48 VDC
- PoE: 48VDC
• Power Consumption: DC48V:1.11W:5BTU,
POE:1.39W:7BTU
• Operating Temperature: 0 - 60°C
• Storage Temperature: -40 - 75°C
• Humidity: 5 ~ 95% RH, Non-condensing
• Housing: Metal
• Weight: 0.22 kg ( 0.48 lb )
• Dimensions (L x W x H): 9.80 x 11.70 x 2.60 cm
(3.86 x 4.61 x 1.02 in.)
WHAT'S INCLUDED
• 1x Secure Device Server
• 1x terminal block
• 1x foot pad set (4 pcs)
• 1x DIN rail mount kit
• 1x user instructions
