The Aten 2-Port PS/2-USB VGA/Audio KVMP Switch CS1732B-AT-U is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24 months manufacturer's warranty.

• 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
• One console controls two computers and two additional USB devices
• 2-port USB 2.0 hub built in
• USB 2.0 compliant
• Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
• Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
• Console audio ports on front panel for easy access - ideal for IP phone users
• Independent switching of KVM, USB, and Audio focus
• Superior video quality; 2048 x 1536; DDC2B
• Supports widescreen resolutions
• Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
• Multiplatform support - Windows , Mac, and Sun
• Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Sun/Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers
• LED Display for easy status monitoring
• Easy installation no software required
• Firmware upgradeable

*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers

• Computer Connections: 2

• Port Selection: Hotkey, Pushbutton, OSD, Mouse

• Connectors

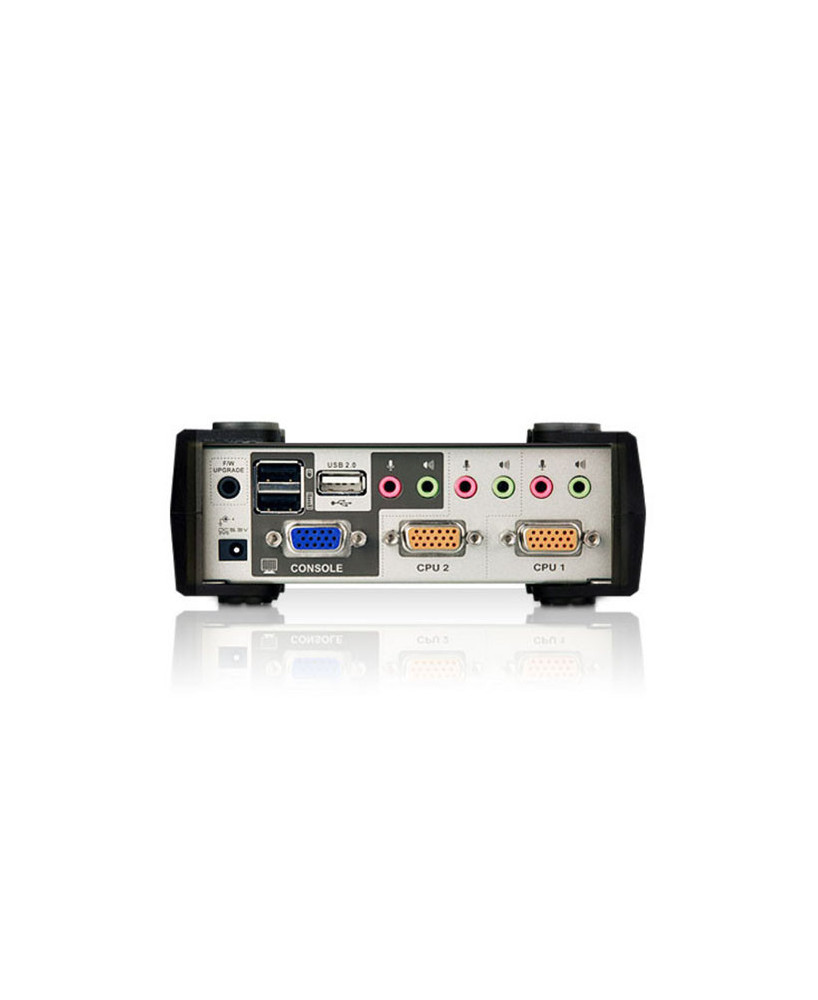

Console Ports: 2 x USB Type A Female (Black), 1 x HDB-15 Female (Blue), 2 x 3.5mm Audio Jack Female (Green), 2 x 3.5mm Audio Jack Female (Pink)
KVM Ports: 2 x SPHD-15 Female (Yellow), 2 x 3.5mm Audio Jack Female (Green), 2 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade: 1 x 4-conductor 3.5mm Jack (Black)
Power: 1 x DC Jack
USB Hub: 2 x USB Type A Female (White)

• Switches
Selected: 2 x Pushbutton

• LEDs
Online / Selected: 2 (Orange)
USB Link: 2 (Green)

• Emulation
Keyboard / Mouse: PS/2; USB

• Video: 2048 x 1536 @ 60Hz; DDC2B

• Scan Interval: 1-255 Seconds (Default: 5 sec.)

• Power Consumption: DC5.3V:2.53W:37BTU

• Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing

• Physical Properties
Housing: Metal
Weight: 0.55 kg ( 1.21 lb )
Dimensions (L x W x H): 14.00 x 8.80 x 5.55 cm, (5.51 x 3.46 x 2.19 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

• Aten 2-Port PS/2-USB VGA/Audio KVMP Switch CS1732B-AT-U with OSD
• 2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
• 2x OSD/Hotkey Stickers
• 1x Firmware Upgrade Cable
• 1x Power Adapter
• 1x User Instructions
