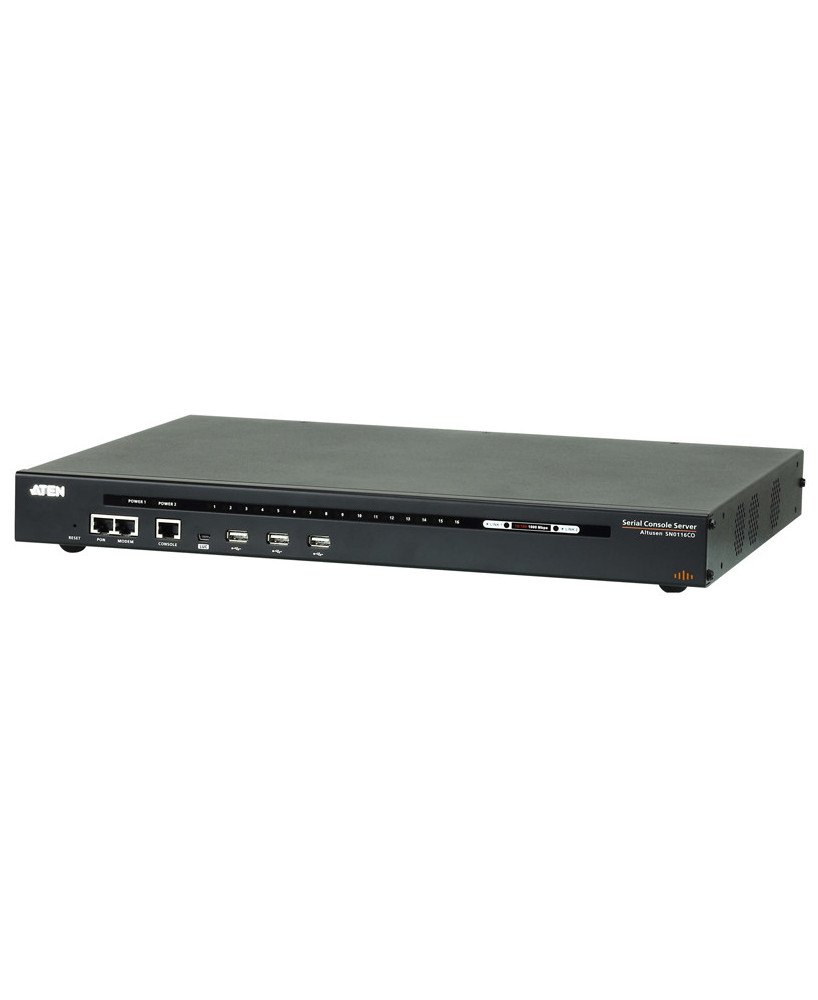

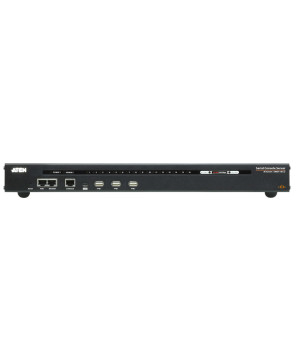

The ATEN SN01xxCO Series provides IT and network administrators secure, out-of-band access to serial devices located at data centers or remote sites (such as network switches allowing console operation using RS-232 and USB console1).With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.

The SN01xxCO Series features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment. In addition, the SN01xxCO models support online detection of connected serial devices (including terminal blocks) for device status monitoring. An e-mail notification will be sent to the administrator when connected devices are offline.With dual Ethernet ports and power supplies, the SN01xxCO supports power redundancy as well as failover, or dual IP addresses access, ensuring 24/7 availability of access to serial devices. A DC power option is also available for each of the SN01xxCO model for more flexible implementation.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 24-month manufacturer's warranty.

FEATURES

• Secure in-band, out-of-band remote serial console and USB console access
• Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
• Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
• Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring

QUICK SPECIFICATIONS

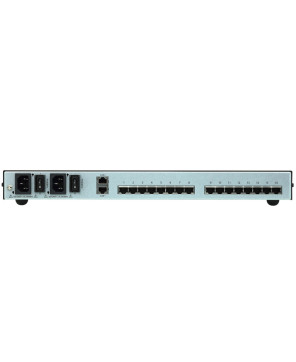

Connectors
• Serial: 16 x RJ-45 Female
• LAN Ports: 2 x RJ-45 Female
• Power: 2 x IEC 60320/C14
• PON: 1 x RJ-45 Female (Reserved)
• Modem: 1 x RJ-45 Female
• USB Port: 3 x USB Type A Female
• Laptop USB Console (LUC) Port: 1 x Mini USB
• Local Console: 1 x RJ-45 Female

Switches
• Reset: 1 x Recessed Pushbutton
• Power: 2 x Rocker Switch
• Maximum Input Power Rating: 100-240V~, 1A, 50/60Hz

LEDs
• Serial: 16 (Green)
• 10/100/1000 Mbps: 2 (Red / Orange / Green)
• Power: 2 (Blue)

Environmental
• Operating Temperature: 0 - 40˚C
• Storage Temperature: -20 ~ 60˚C
• Humidity: 0 - 80% RH, Non-condensing

Physical Properties
• Housing: Metal
• Weight: 4.38 kg ( 9.65 lb )
• Dimensions (L x W x H): 43.72 x 32.98 x 4.40 cm

WHAT'S INCLUDED

• 1x SN0116CO Serial Console Server
• 1x Laptop USB Console Cable
• 2x Power Cords (AC models)
• 1x Mounting Kit
• 2x Lok-U-Plugs
• 1x Lok-U-Plug Installation Tool
• 1x Foot Pad Set (4 pcs.)
• 1x User Instructions
