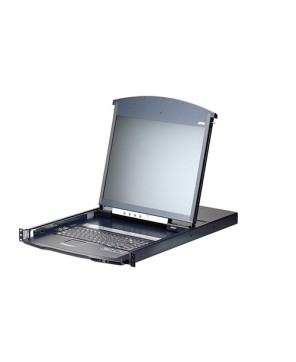

The Aten 16 Port Multi-Interface Dual Rail CAT5 19" LCD KVM over IP Switch KL1116VN-AXA-AU features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with a built-in touchpad. It enables local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. Furthermore, this KVM over IP Switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24-month manufacturer's warranty.

• One bus for local and one bus for remote KVM over IP access
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
• Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

• Console Connections:
- Local: 1
- Remote: 1
• Computer Connections:
- Direct: 16
- Maximum: 256 (via Cascade)
• Port Selection: OSD, Hotkeys, Pushbuttons

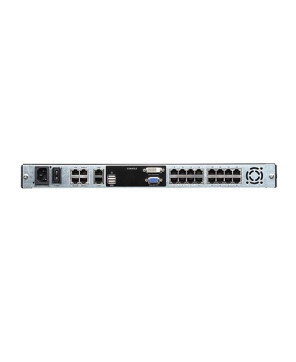

• Connectors:
- Console Ports: 2 x USB Type-A Female (White); 1 x DVI-D Female (White); 1 x HDB-15 Female (Blue)
- External Mouse Port: 1 x USB Type-A Female
- KVM Ports: 16 x RJ-45 Female
- Serial: 2 x RJ-45 Female
- PON: 1 x RJ-45 Female
- Modem: 1 x RJ-45 Female
- LAN Ports: 2 x RJ-45 Female
- Power: 1 x IEC 60320/C14
• Switches:
- Port Selection: 16 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
- Power: 1 x Rocker
- LCD Power: 1 x Pushbutton
- LCD Adjustment: 4 x Pushbutton
• LEDs:
- Online: 16 (Green)
- Selected: 16 (Orange)
- 10/100/1000 Mbps: 2 (Orange / Orange & Green / Green)
- Power: 1 (Blue)
- LCD Power: 1 (Orange)
- Lock: 1 x Num Lock(Green); 1 x Caps Lock(Green); 1 x Scroll Lock(Green)
• Video:
- Remote: 1920 x 1200@60Hz
• Panel Spec:
- LCD Module: 19"
- Resolution: 1280 x 1024 @75Hz
- Pixel Pitch: 0.294 mm x 0.294 mm
- Response time: 5 ms
- Viewing Angle: 170° (H), 160° (V)
- Contrast Ratio: 1000:1
- Support Color: 16.7M colors
- Luminance: 250 cd/m²
• Emulation:
- Keyboard / Mouse PS/2; USB
• Scan Interval: 1-255 Sec.
• Maximum Input Power Rating: 100-240V AC; 50-60Hz; 1A
• Power Consumption:
- AC110V:32.1W:157BTU
- AC220V:32.4W:158BTU
• Physical Properties:
- Housing: Metal
- Weight: 15.28 kg ( 33.66 lb )
- Dimensions (L x W x H): 48.00 x 70.12 x 4.40 cm

• 1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
• 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
• 1x Power Cord
• 2x L Brackets
• User Instructions
