The Aten 16-Port Multi-Interface Cat 5 KVM Switch KH1516A-AX-U is a control unit that allows access to multiple computers from a single KVM console. Features RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto-Single Compensation (ASC), signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1516 permits any combination of computer and serial devices to coexist during the installation.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24 months manufacturer's warranty.

• One KVM console control up to 16 directly connected computers
• Space-Saving RJ-45 connectors and Cat 5e/6 cabling
• By daisy-chaining up to 31 additional KH1516A switches, as many as 512 computers can be controlled from the original KVM console
• Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) are supported on both the KVM console and computer sides
• Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters*, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters
• Configure port access rights for users on a port-by-port basis
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Multiplatform support – Windows, Linux, Mac, and Sun
• Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
• Multiple User Accounts -Supports up to 10 users and 1 administrator accounts
• Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
• Adapter ID
• Firmware Upgradeable

*For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.

• Computer Connections
Direct: 16
Maximum: 512 (via Daisy-chain)

• Port Selection: OSD, Hotkey, Pushbutton

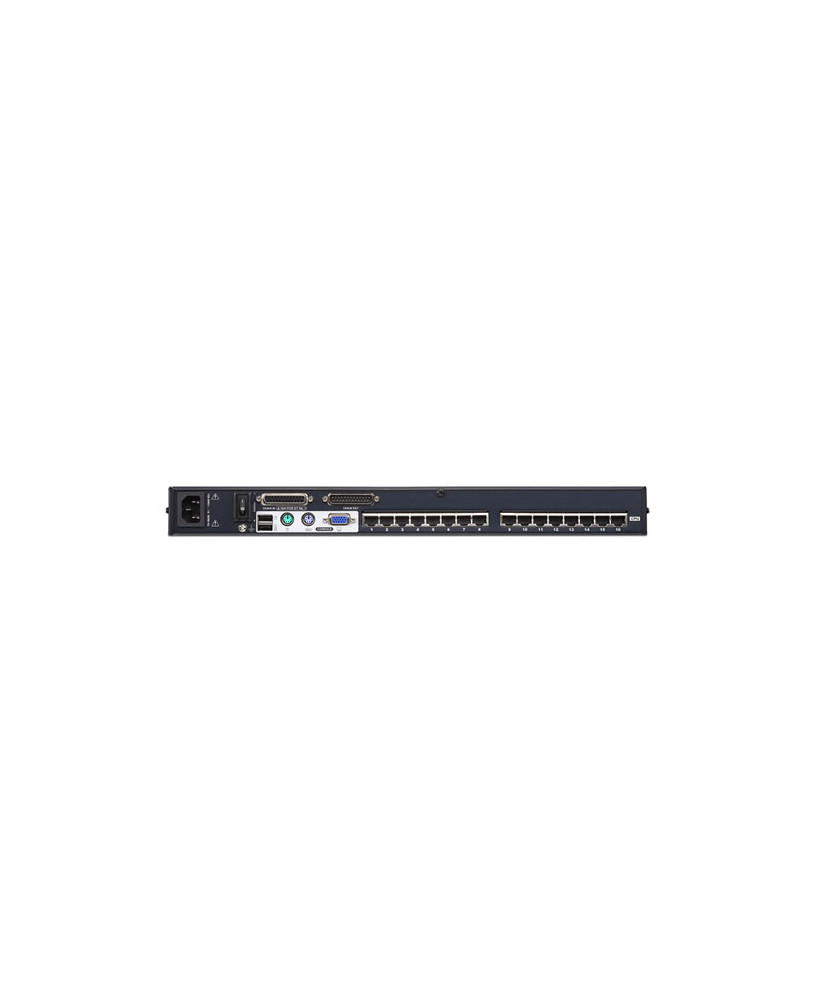

• Connectors
Console Ports: 2 x USB Type A Female, 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x HDB-15 Female (Blue)
KVM Ports: 16 x RJ-45 Female
Daisy Chain Ports: 1 x DB-25 Female (Black), 1 x DB-25 Male (Black)
Firmware Upgrade: 1 x RJ-11 Female (Black)
Power: 1 x IEC 60320/C14

• Switches
Port Selection: 16 x Pushbutton
Reset: 1 x Semi-recessed Pushbutton
Firmware Upgrade: 1 x Slide
Power: 1 x Rocker

• LEDs
Online: 16 (Green)
Selected: 16 (Orange)
Power: 1 (Blue)
Station ID: 1 x 2 Digit 7-segment (Orange)

• Emulation
Keyboard / Mouse: PS/2; USB

• Scan Interval: 1–255 sec.

• Video: 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)

• Maximum Input: Power Rating 100–240V AC; 50/60 Hz; 1A

• Power Consumption: AC110V:5.3W:33BTU, AC220V:5.3W:33BTU

• Environmental
Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0–80% RH, Non-condensing

• Physical Properties
Housing: Metal
Weight: 2.67 kg ( 5.88 lb )
Dimensions (L x W x H): 43.72 x 16.36 x 4.40 cm, (17.21 x 6.44 x 1.73 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

• Aten 16-Port Multi-Interface Cat 5 KVM Switch KH1516A-AX-U
• 1x Firmware Upgrade Cable
• 1x Power Cord
• 1x Rack Mount Kit
• 1x Foot Pad Set (4 pcs.)
• 1x User Instructions
