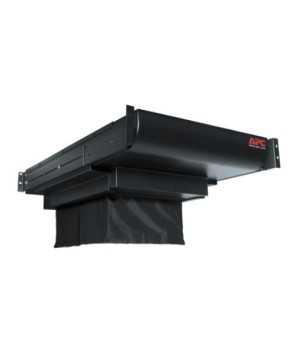

APC Air Distribution Unit Rackmount 2U ACF002 for AP7950B, AR3103, AR3103SP, AR3106SP
The APC ACF002 Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. It prevents the conditioned air from mixing with warmer room air before reaching the equipment.
The APC ACF002 Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. It prevents the conditioned air from mixing with warmer room air before reaching the equipment. The APC ACF002 minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. This product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with 24 month manufacturer's warranty.
FEATURES
• Promotes Proper Airflow: Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.
• Dual fans: Provides fault tolerance in the event of a fan failure.
• Minimizes Air Mixing: Delivers cool, conditioned air directly from the raised floor to the inlet of the IT equipment.
• Air Filtration: Removes dirt and other particulates from the intake air for cleaner supply air.
• Fan control switches: Users can turn one or both fans on and off depending on the heat load.
• Mounting rails: Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
• Fan guards: A safety measure that provides protection from the fan opening by covering the inlet.
• Dual A-B Power Inputs: Draws power from the UPS for power protection with dual feeds for redundancy.
QUICK SPECIFICATIONS
• Product Description: APC fan unit - 2U
• Product Type: Fan unit
• Colour: Black
• Height: 2U
• Dimensions (WxDxH): 41.9 cm x 73.7 cm x 8.9 cm
• Weight: 18.6 kg
• Designed for: P/N: AP7950B, AR3103, AR3103SP, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SMC1000-BR, SMC1500I-2UC, SMX2000LVNCUS, SMX2000LVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT1500RMXLA-NC
WHAT'S INCLUDED
• APC Air Distribution Unit Rackmount 2U ACF002
• Rack Mounting Brackets
• User Guide
APCACF002BN
New
10000 Items
Specific References
- MPN
- ACF002
The APC ACF002 Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. It prevents the conditioned air from mixing with warmer room air before reaching the equipment.
