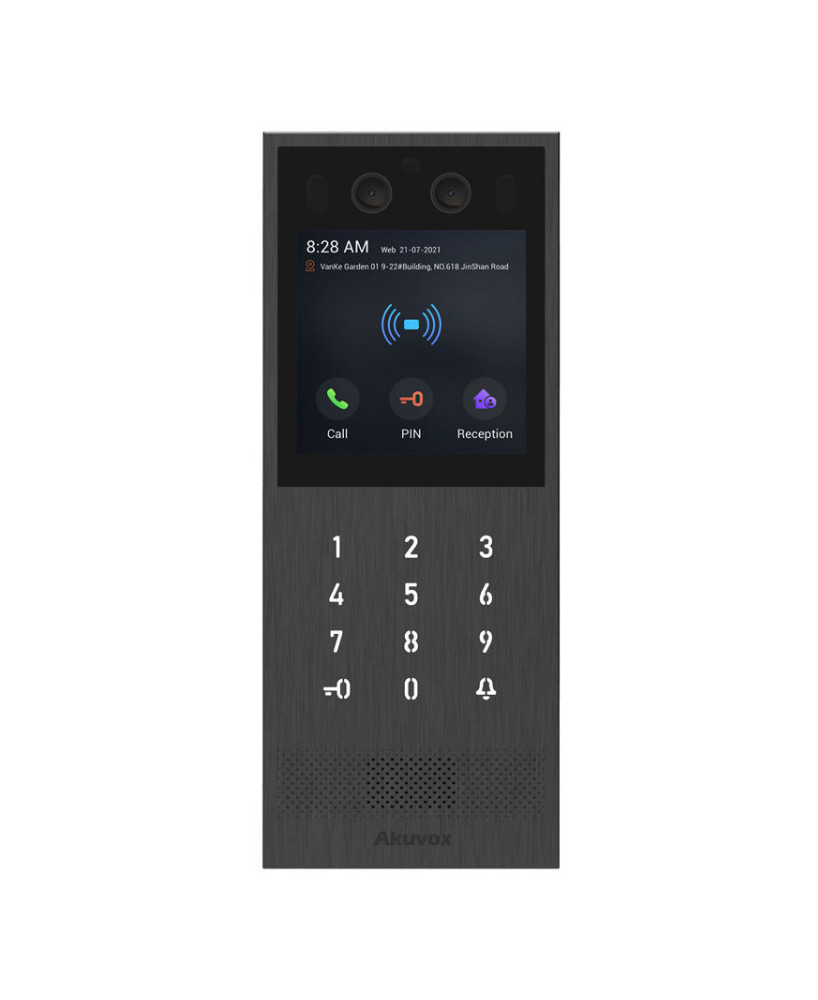

The Akuvox X912S SIP Video Intercom is a reliable and secure solution for managing access to your building. Its vandal-resistant body ensures durability, while advanced features like Face ID, card, PIN, BLE, and QR code provide flexible entry options for convenience and enhanced security. This device allows you to monitor your entrance and communicate clearly with visitors using its two-way audio over IP networks, equipped with Echo Cancel technology.

Designed for seamless integration, the X912S complies with SIP and ONVIF standards, making it compatible with SIP-capable PBXes and network surveillance systems. With Power-over-Ethernet (PoE+), it supports easy installation and efficient operation, making it a perfect choice for ensuring safety and accessibility in both residential and commercial environments.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• 4-inch color touchscreen for intuitive operation.
• 2MP main starlight camera for enhanced low-light performance, supported by a secondary camera.
• Powered via PoE (IEEE802.3af) for streamlined installation.
• Features voice activation detection for seamless communication.
• Vandal-resistant design with IK09 rating for durability.
• Supports H.264 video codec for high-quality video streaming.
• Compatible with narrowband audio codecs: G.711a, G.711μ, and G.729.
• Includes a numerical keypad and QR code scanning for versatile input options.
• Provides multiple access control methods: IC, ID, NFC, and Bluetooth.
• Rated IP65 for water and dust resistance.
• Wall mountable for easy installation.

QUICK SPECIFICATIONS

• Physical & Power:
• Front Panel: Stainless steel
• Microphone: -42dB
• Display: 4 Inch, color TFT LCD, touchable
• Speaker: 80Ω / 2W
• Camera: 2M pixels
• Power Out: 12V/1A (Max.)
• Numeric Keypad: Yes
• Gesture Detection Sensor: Support
• Ethernet Port: RJ45, 10/100Mbps adaptive
• Wiegand Port: Support
• 802.3at Power-over-Ethernet: Yes
• RS485 Port: Support
• 12V DC Connector: Yes (if not using PoE+)
• Water-proof & Dust-proof: IP65
• RF Card Reader: 13.56MHz & 125kHz, NFC
• Installation: Wall-mounted
• Relays Out: 2
• Dimension: 234x94x34mm
• Inputs: 3
• Working Humidity: 10~90%
• BLE: Support
• Working Temperature: -20°C ~ +60°C
• Line Out: 1
• Storage Temperature: -40°C ~ +70°C

Audio:
• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Relays controlled individually by DTMF tones
• Narrowband Audio Codec: G.711a, G.711µ, G.729
• Broadband Audio Codec: G.722
• Multi-way Unlock: Face, IC/ID Card, PIN, and BLE
• Camera Permanently Operational
• DTMF: In-band, Out-of-band (RFC2833)
• Echo Cancellation
• White Balance: Auto
• Minimum Illumination: 0.1LUX

Deployment & Maintenance:
• Voice Activation Detection
• Comfort Noise Generator
• Auto-Provisioning
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Firmware Upgrade
• System Logs (include door access logs)
• Entry Log Export

Video:
• Sensor: 1/2.8", CMOS for main camera
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video Codec: H.264
• Video Technology: HDR
• Video Resolution: Up to 1920x1080p
• Max. Image Transfer Rate: 1080p-30fps
• Viewing Angle: 125°(H)/65°(V)

Application Scenario:
• Compatible with 3rd-Party Video Components (e.g., NVRs)
• Provides Resident/Visitor Access Control for buildings like condominiums, apartment buildings, office buildings, gated communities, and industrial buildings

Networking and Protocol:
• Protocols Support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

WHAT'S INCLUDED

• Akuvox Vandal-Resistant SIP Video Intercom with Facial Recognition X912S
• User Guide
