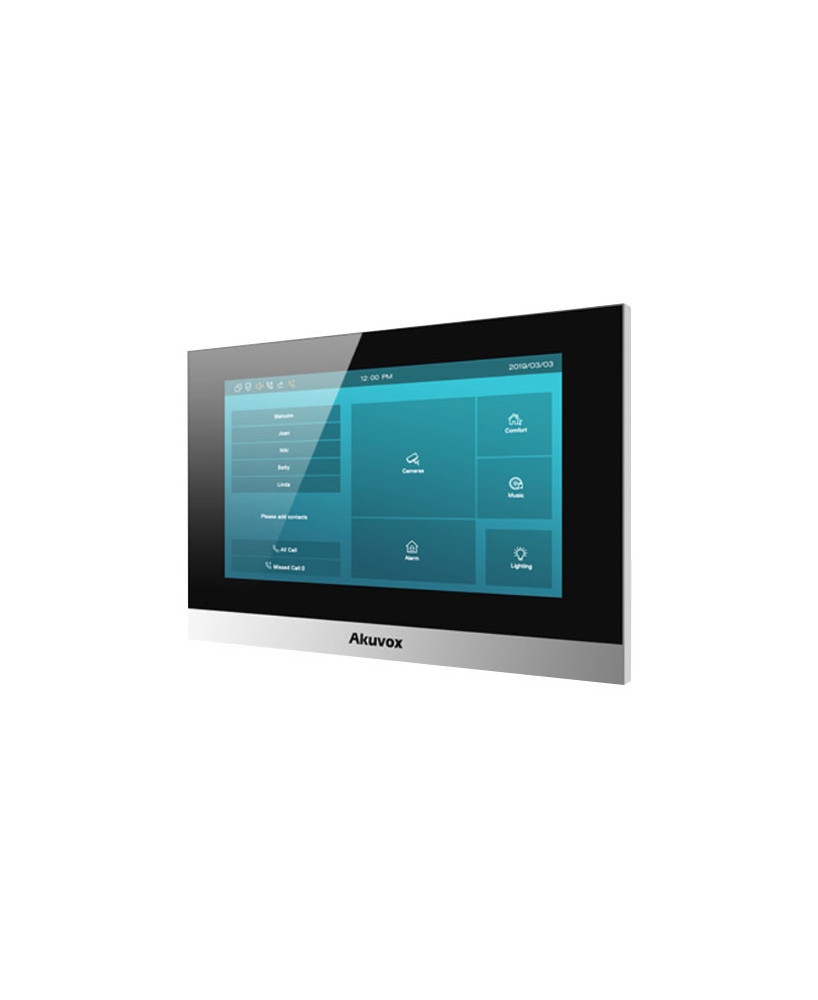

The Akuvox C315S Indoor Video Intercom Panel delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display. With a compact body, it fits into limited space and offers a fat stack of features. It is typically used in apartments. It is a multifunctional communicator, with an Android operating system, provides audio and video communication with door phones via SIP 2.0 protocol.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 12-month manufacturer's warranty.

• Ultra-clear, stylish appearance
• Thin profile and small footprint
• 7-inch capacitive touch screen with energy saving mode
• Two-way audio communication with other units in the network
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Powered by PoE or external source
• Support US or European electrical wall box mounting

Physical & Power
• Front panel: Plastic
• RAM / ROM: 1GB / 8GB
• Display: 7 Inch TFT LCD
• Screen: 7 Inch capacitive touch screen
• RS485 port: Support
• Relay out: 1
• Bell in: 1
• I/O: 8
• Microphone: -58dB
• Speaker: 4Ω / 2W
• Ethernet ports: 2xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC connector (if not using PoE)
• Installation: Wall-mounted & Desktop
• Dimension: 200.2x132.2x27.2mm
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C

Touch Screen Display
• Display Mode: Normally white, Transmissive
• LCD Size: 7inch (Diagonal)
• Resolution: 1024x600
• Contrast ratio: 800:1
• Luminance: 270 cd/m²
• Viewing Angle:
75° Left
75° Right
70° Upper
75° Lower
• Touch Screen: Projected capacitive

Audio
• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Automatic Gain Control

Video
• Streaming formats: H.263 & H.264

Application Scenario
• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

• Akuvox C315S 7" Touch Screen Indoor Video Intercom Panel
• User Guide
